IP55 High Efficiency Pool Pump , Variable Speed Pool Pump With Control Switch

Name: IP55 High Efficiency Pool Pump Variable Speed Pool Pump With Control Switch
Brand: autumn solar
Price: 1 USD

Brand Name : autumn solar

Model Number : STP2200S

Certification : ce, CCC

Place of Origin : Made in China

MOQ : 1 PC

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 PCS/Month

Delivery Time : 7-15 days

Packaging Details : carton

Model No : STP-2200S

power : 3HP/380V/50Hz or 220V single phase

material : engineering plastic reinforced with fibreglass

Type : Self-Priming Pump, centrifugal pump

Application : swimming training

certificate : ce, CCC

Contact Now

Quiet-running adjustable counterflow nozzle / jet for swimming training

STP series single – stage centrifugal pumps with complete drainage device

Inbuilt counterflow system:

This jet stream is ready for easy installation. It is possible to regulate the jet strength and air suction on the nozzle of 40mm in diameter, which is directionally adjustable. The nozzle , suction and pneumatic switch are positioned in the front cover panel of the equipment. Complete counterflow system includes:

1. Counterflow nozzle 40mm (regulation water – air )
2. Front cover panel – attractive design
3. Pool wall lead – through
4. Pump
5. Electropneumatic switch with safety element
6. PVC fitting

MOTOR:

* Asynchronous, two poles.
* IP55 protection
* Class F insulation
* Continous operation

MATERIALS:

* Suction and discharge mountings in polypropylene
* Motor shaft in stainless steel AISI – 304
* Impeller in PPO
* Mechanical seal in sic – sic
* Motor housing in aluminum L – 2521

TECHNICAL PARAMETER:

model	HP	KW	V		A		P1	Q	L/min	0	333.3	500	666.7	833.3	1000	1166.7	1333.3
			1~	3~	1~	3~	(KW)		L/min	0	333.3	500	666.7	833.3	1000	1166.7	1333.3
			50Hz	50Hz	220V	380V	(KW)		M3/h	0	20	30	40	50	60	70	80
STP-2200S	3	2.2	220V	380V	15	4.9	2.8	H(m)		12	11.7	10.5	9.8	7.9	5.8	2.1
STP-3000S	4	3				6.4	3.6			14.5	14.2	14	13.4	11.5	9.5	6.7
STP-4000S	5.5	4				8.3	4.7			17	16	16	15.3	13.8	12.5	9.5	7.5

IP55 High Efficiency Pool Pump , Variable Speed Pool Pump With Control Switch

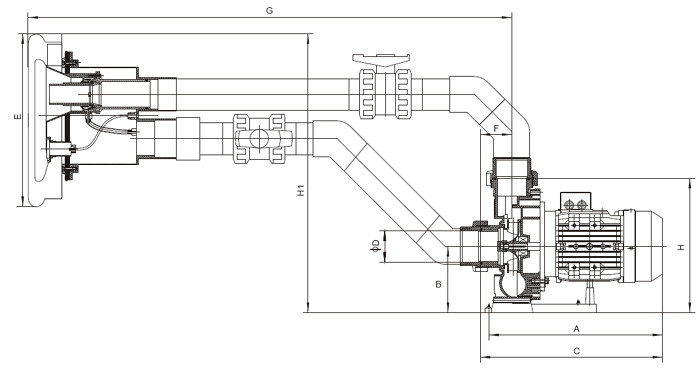

DIMENSION:

model	A	B	C	D	E	F	G	H	H1
STP-2200S	370	156	440	Φ75	395	77	1110	340	635
STP-3000S	410	156	470	Φ75	395	77	1110	340	635
STP-4000S	440	156	500	Φ75	395	77	1110	340	635

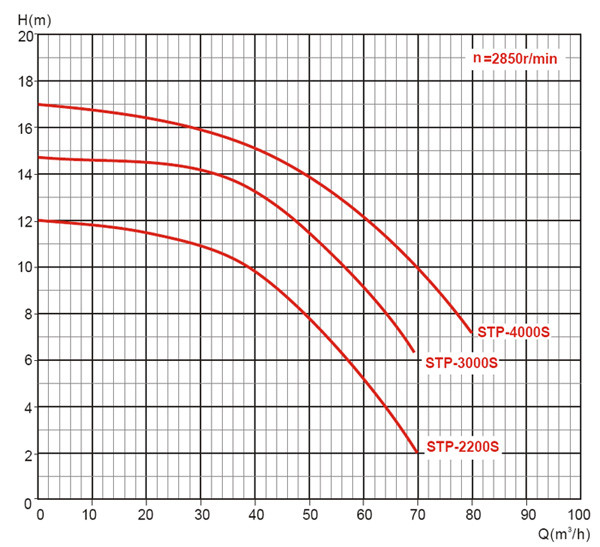

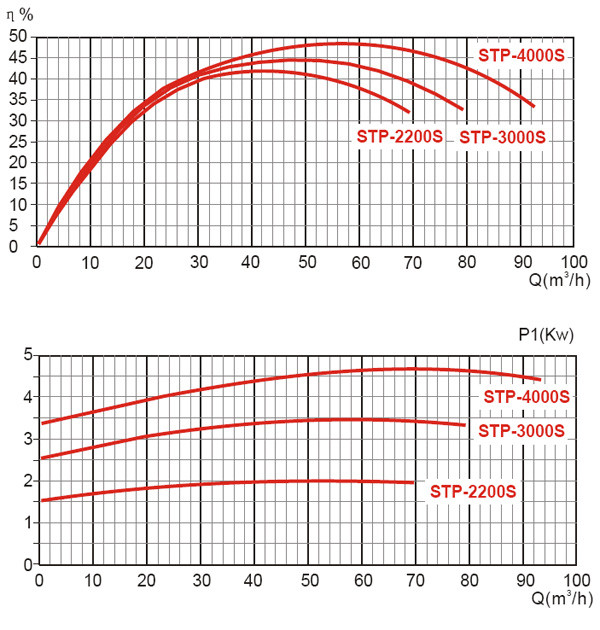

PERFORMANCE CURVE:
IP55 High Efficiency Pool Pump , Variable Speed Pool Pump With Control Switch

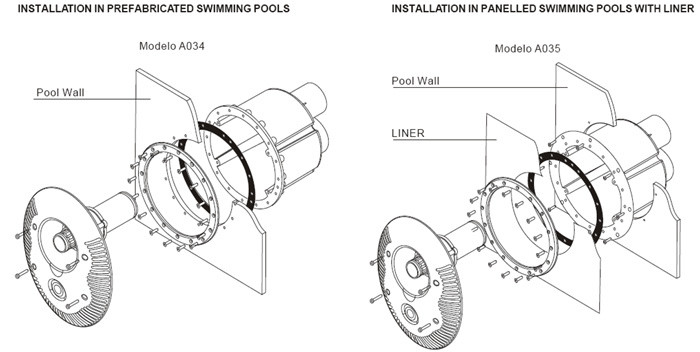

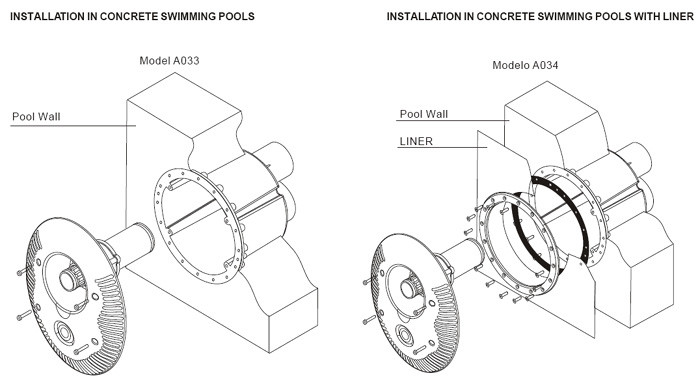

INSTALLATION DIAGRAM:
